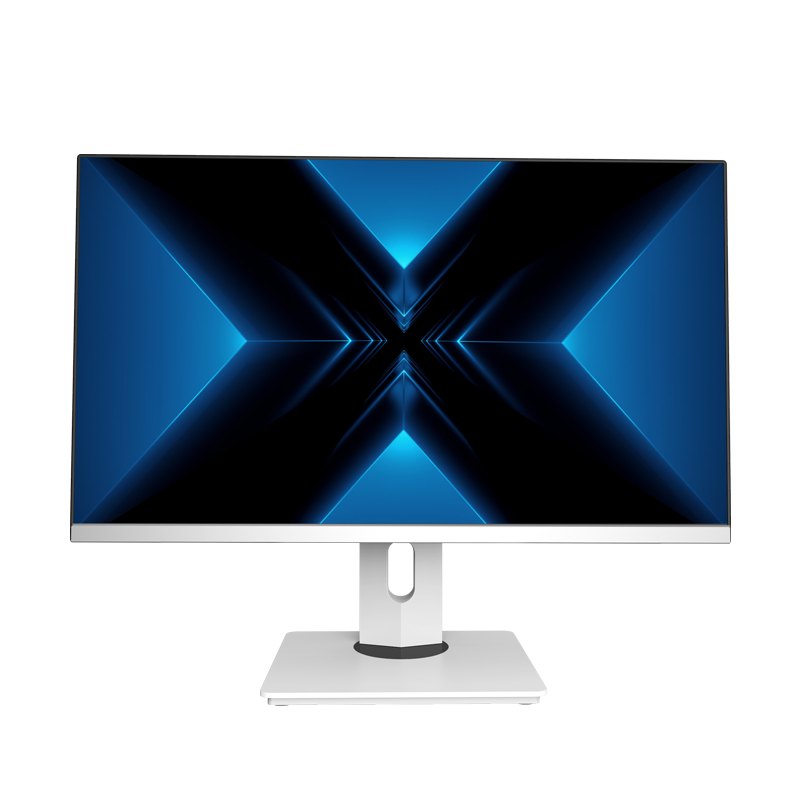

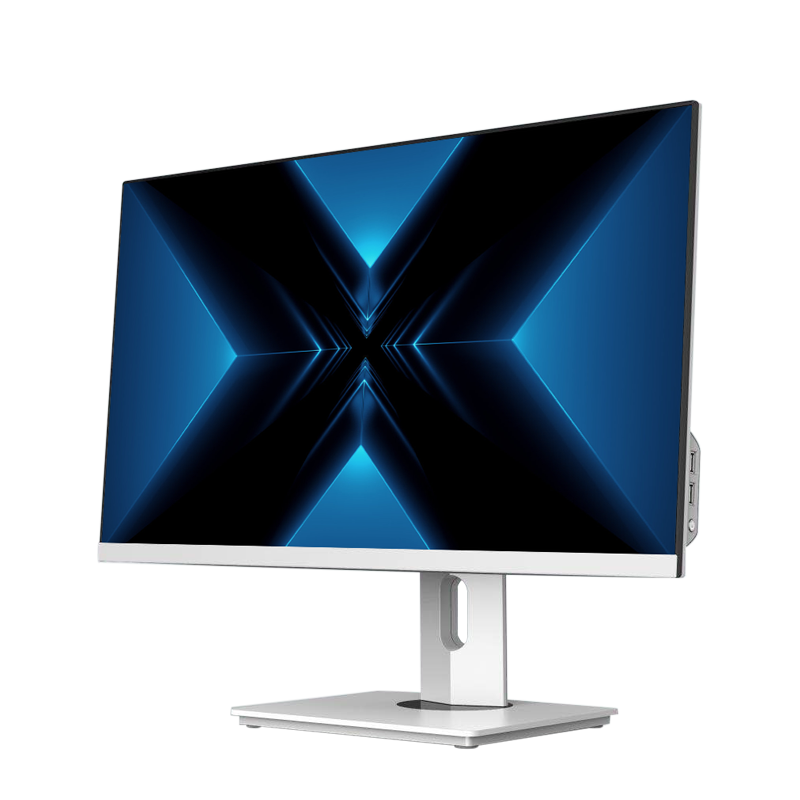

Libra M24 23.8-inch All-in-One PC
Libra M24 23.8-inch All-in-One PC Core i7 23.8-inch HD IPS Display PC 2* DDR4 16GB, M.2 2280 SSD 512GB and Rotatable Screen
- Product Form: Desktop Computer All-in-one PC
- Dimensions:541.6×322.1×33.4mm
- Material: Plastic
- Weight: About 4.0 kg
- Intel 13th Gen Raptor Lake-U Processor
- Intel 12th Gen Alder Lake-U Processor
- Intel 11th Gen Tiger Lake-U Processor
- Intel 10th Gen Ice Lake-U Processor
- Intel 10th Gen Comet Lake-U Processor
- Intel Jasper Lake Processor
- Screen Size:23.8 inch
- Screen Resolution:1920*1080 IPS
- Screen Ratio:16:9
Libra M24 23.8-inch All-in-One PC
Libra M24 23.8-inch All-in-One PC Core i7 23.8-inch HD IPS Display PC 2* DDR4 16GB, M.2 2280 SSD 512GB and Rotatable Screen
OEM/ODM Desktop Computer All-in-one PC
Shenzhen a dreamer as a manufacturer with 13 years of experience in the production of all-in-one PCs, to meet the needs of e-commerce customers, we launched the Libra M24 a 23.8-inch desktop all-in-one PC.
With multiple processor solutions
We have customized the solution of All-in-One PC according to customer’s needs, Libra M24 23.8-inch All-in-One PC is equipped with 11th/12th/13th , Intel Core Comet Lake i3/i5/ i7, and also supports other platform processors such as Tiger Lake/ Jasper Lake/ Gemini Lake. Lake.

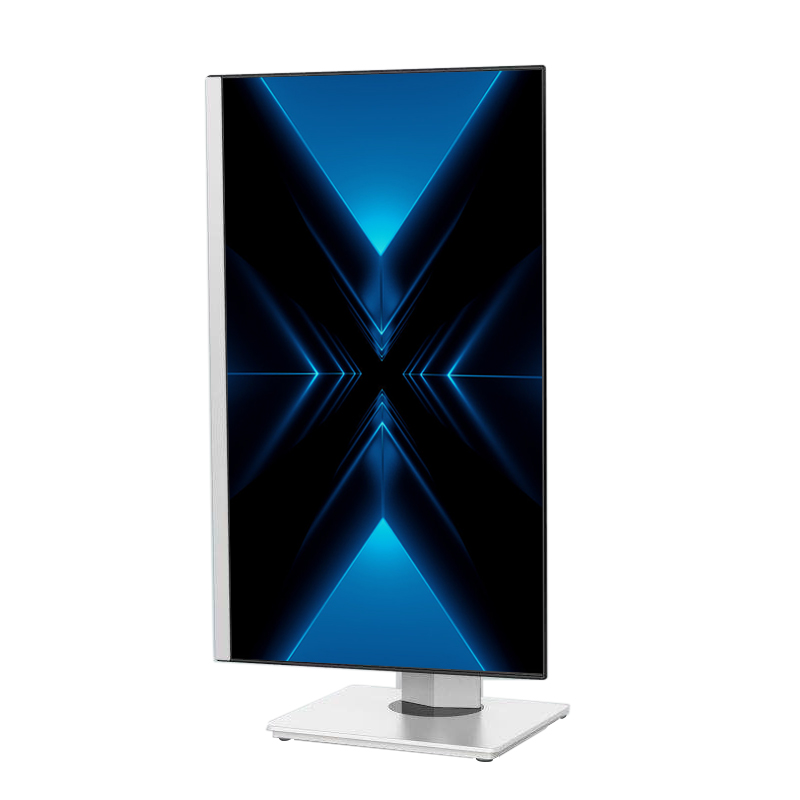

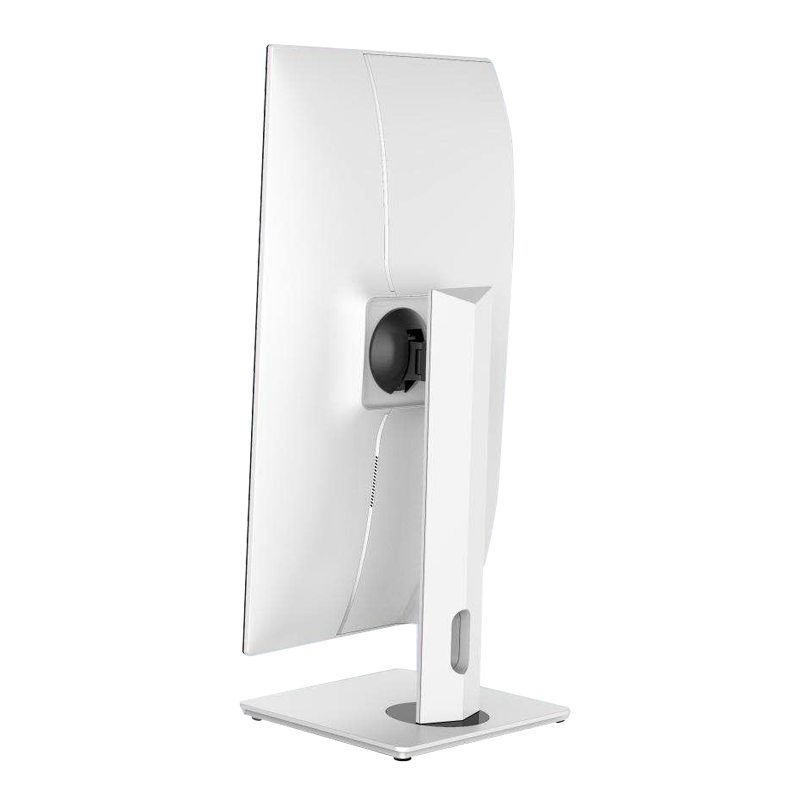

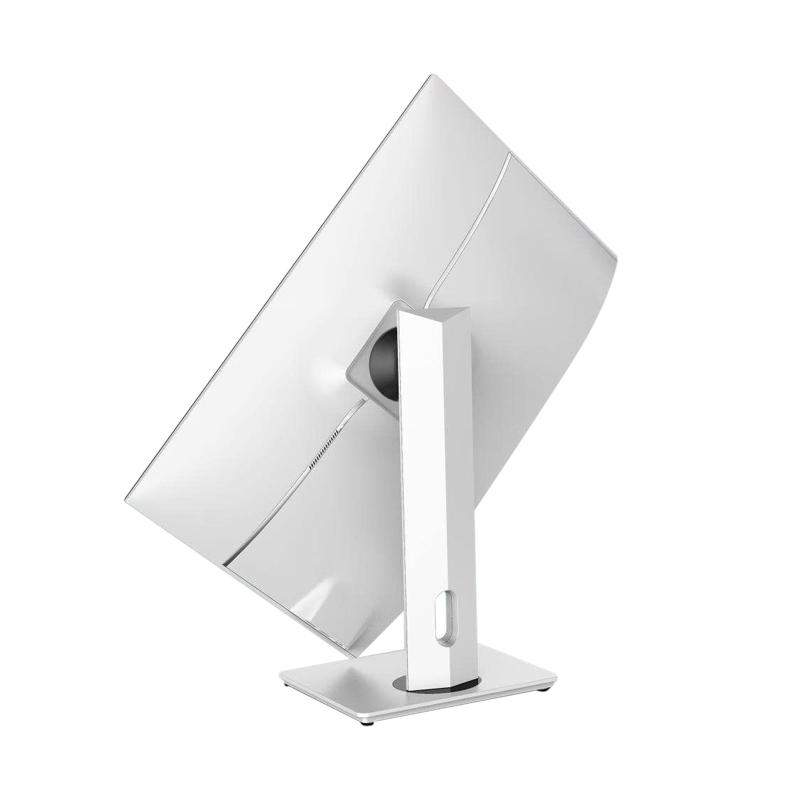

Lifting And Rotating Screen
The Libra M24 All-in-One PC has an adjustable screen height of 38cm to 57cm, supports front-to-back adjustments from -4° to 28° for an adjustable viewing angle, and supports clockwise rotation of the screen by 90° for viewing more Excel content or program code on a larger screen to meet the needs of our merchants’ products for their segmented target audience.
Model Name: Libra M 24
System Physical Standard Configuration:
Product Form
- Product Form: Desktop Computer All-in-one PC
- Dimensions: 541.6×322.1×33.4mm
- Material: Plastic
- Weight: About 4.0 Kg
LCD
- Screen Size: 23.8 inch
- Screen Resolution: 1920*1080 IPS
- Screen Ratio: 16:9
Power adapter
- DC : 19V/3.42A or DC 19V/6.3A（for 65W CPU)
Network Connections:
WIFI
- WIFI : 802.11 ac/b/g/n
Bluetooth
- Version : Bluetooth 4.2
Ethernet
- Gigabit LAN : 1000M/100M/10M RJ45 *1
Interface Configuration:
Memory Card Slot
- External Memory: NA
RJ45 Port
- Network: Support 1000M/100M/10M RJ45 *1
USB Port
- Support Data Transfer：USB3.2 Gen1 *4, USB2.0 *2
DC Port
- Power : DC IN *1
Headphone Jack
- Music Output:Mic *1, Headphone *1
HDMI
- Video output : 1x HDMI A TYPE
VGA Port
- Video Output : VGA *1 or COM *1
Keyboard
- Input Device: Via USB port
System Hardware Configuration:
CPU
- Intel 13th Gen Raptor Lake-U Processor
- Intel 12th Gen Alder Lake-U Processor
- Intel 11th Gen Tiger Lake-U Processor
- Intel 10th Gen Ice Lake-U Processor
- Intel 10th Gen Comet Lake-U Processor
- Intel Jasper Lake Processor
GPU
- Type: Support Up to 65W
RAM
- Capacity: 2* DDR4 SO-DIMM 16GB
SSD
- SSD: M.2 2280 SSD 128GB/256GB /512GB (Optional)
HDD
- Capacity : HDD 500GB/1TB (Optional)
Speaker
- Built-in : 2 x 4Ω 1.5W stereo speakers
Main Accessories:
Power adapter
- Standard Configuration： DC 19V/3.42Aor DC 19V/6.3A （for 65W CPU)
Software Configuration:
Operating System
- Windows : Windows 11
MOQ
- Tablet: 1000pcs
- Laptop: 1000pcs
- All-in-oen: 500pcs
- Mini PC: 500pcs
Lead time
- Delivery within 45 days from the date of receipt of the deposit
Payment term
- 30% deposit of the PI amount to be arranged upon the signature, and 70% balance of the PI amount to be arranged before shipment.
FAQ
- Warranty Policy：
