PA2104P 21.5-inch All-in-One PC Learning Office AIO
The 21.5-inch all-in-one PC PA2104P from the Chinese PC maker is available with Intel 10th 11th 12th 13th’s Raptor Lake/Alder Lake/Tiger Lake/Ice Lake/Comet Lake/Jasper Lake processor platforms.
- Dimension: 362.1×253.76×23.2mm
- Material: Plastic
- Weight: About 1.8 kg
- Intel: Alder Lake-P(i3-1220P/i5-1240P/i7-1260P)/
- Tiger Lake
- Ice Lake
- Comet Lake
- Coffee Lake
- Jasper Lake
- Gemini Lake
- Refresh
- AMD: Cezanne “U”
- Cezanne “H”
- Screen Size:16-inch
- Gamut:100% sRGB
- Frequency:60Hz
- Screen Resolution:2560*1600 IPS
- Screen Ratio:16:10
21.5-inch all-in-one computer manufacturer
a dreamer, a manufacturer with 13 years of EOM/ODM All-in-One PC experience from Shenzhen, Guangdong, China, presents a 21.5-inch All-in-One PC featuring an HD display with 1920*1080 IPS resolution and a screen brightness of 220-300 cd/m² screen refresh rate of 60Hz.
Customized Desktop All-in-One PCs

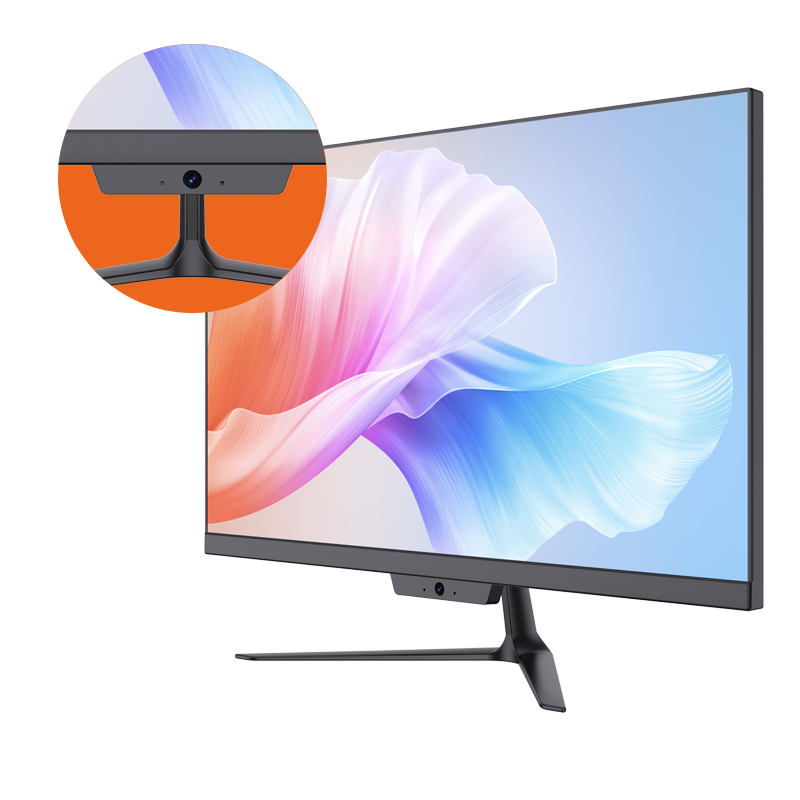

PA2104P 21.5-inch All-in-One PC can be customized according to the guest’s requirements, there are two options to choose from, one is without a camera, the other is with a camera at the bottom, and the camera supports 2.0 MP, with dual D-Mic.
Rich interfaces

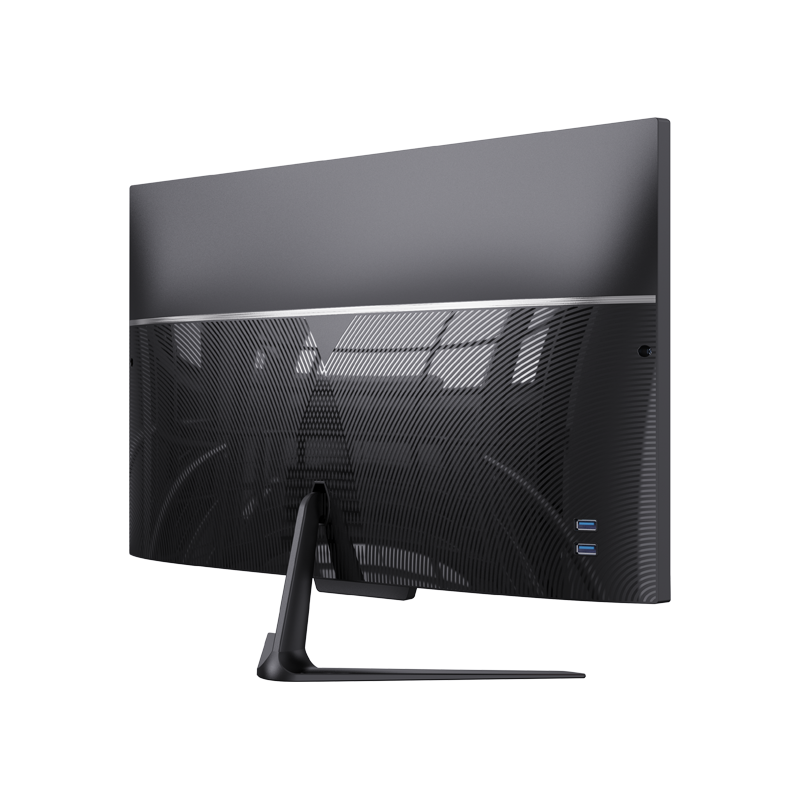

The PA2104P 21.5-inch AIO is equipped with a wide range of interfaces to meet the needs of different users, including two USB2.0, four USB3.0, one HDMI, one VGA, and one RJ45, with a Kensington Lock reserved for governmental bidding requirements.
Model Name: PA2104P
System Physical Standard Configuration:
Product Form
- Product Form: AIO
- Dimensions: 494×283 mm (without stand)
- Material: Plastic
- Weight: About 3.7 kg
LCD
- Screen Size: 21.5 inch
- Frequency: 60Hz
- Brightness: 220-300 cd/m²
- Screen Resolution: 1920*1080 IPS
- Screen Ratio: 16:9
Battery
- Type: NA
- Capacity: NA
- Working Time: NA
Network Connections:
WIFI
- WIFI Standard: WiFi 802.11 a/b/g/n/ac (ax optional)
- WIFI Frequency: 2.4G/5G (Wi-Fi 6 Optional)
Bluetooth
- Version : Bluetooth 4.2 above
Ethernet
- Gigabit LAN : Support 1000M/100M/10M
Interface Configuration:
Card Reader
- Extended Storage : NA
USB Type-A
- Data Transfer : 2x USB2.0, 4x USB3.0
USB Type-C
- USB C Transfer : NA
Audio Jack
- Music Output : 1x Line-out+1xMic_in
DC Jack
- Charging : 1x DC Jack
HDMI
- Video output : 1x HDMI A TYPE
RJ45
- Ethernet Network : 1x RJ45
ODD
- DVD-RW : NA
Kensington Lock
- Security : 1x Kensington Lock
Key
- Security : Power Key
System Hardware Configuration:
CPU
- Intel 13th Gen Raptor Lake U/P/H Processor
- Intel 12th Gen Alder Lake U/P/H Processor
- Intel Alder Lake-N Processor
- Intel 11th Gen Tiger Lake Processor
- Intel 10th Gen Ice Lake Processor
- Intel 10th Gen Comet Lake Processor
- Intel Jasper Lake Processor
GPU
- Alder Lake-N:
1x SO-DIMM DDR4 3200MHz, 8GB/16GB - Alder Lake-U:
2x SO-DIMM DDR4 3200MHz, up to 32GB
RAM
- Capacity: RPL/ADL/TGL: 2x DDR4 SO-DIMM 3200 MHz
JSP: Onboard
Storage
- SSD: 1x M.2 2280 SATA/PCIe SSD
- HDD: 1x 2.5 inch SATA 3.0 HDD/SSD
Camera
- Front : Optional (2.0MP, with D-Mic *2, bottom)
- Rear: NA
Audio
- Built-in : 2 x 3W stereo speakers
Finger Print
- Finger Print : NA
TPM
- Security : Optional
RTC
- RTC Connector : Support
Main Accessories:
Power adapter
- Type : DPlug in wall
- Input: AC 100~240V
- Output：ADL-N100: DC 12V/3A , ADL-U: DC 19V/2.1A
Keyboard
- Type : US Layout
- Backlight： NA
Software Configuration:
Operating System
- Windows : Windows 11
MOQ
- Tablet: 1000pcs
- Laptop: 1000pcs
- All-in-oen: 500pcs
- Mini PC: 500pcs
Lead time
- Delivery within 45 days from the date of receipt of the deposit
Payment term
- 30% deposit of the PI amount to be arranged upon the signature, and 70% balance of the PI amount to be arranged before shipment.
FAQ
- Warranty Policy：
